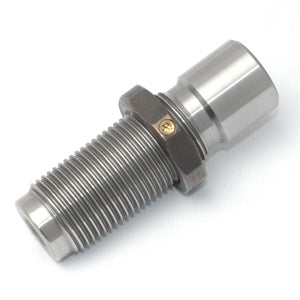

Body and Forming Dies
Body and Forming Dies
Body and Forming Dies
Newlon Precision

Body and Forming Dies

Regular price $39.00 $0.00

Body Dies and Forming Dies come ready to ream with the pilot hole of your choice.

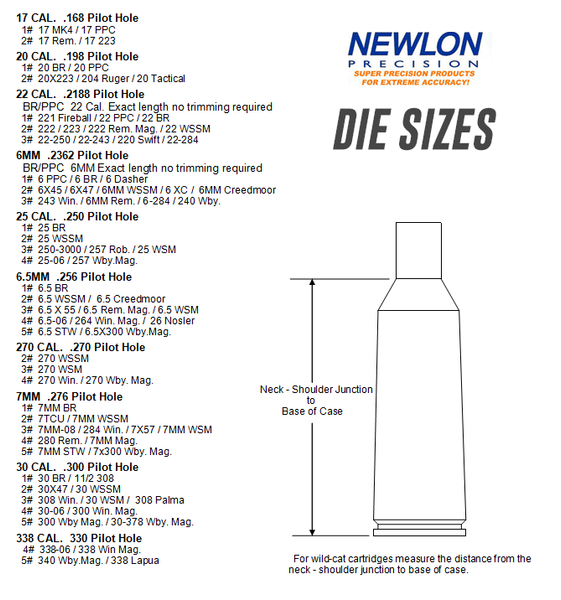

DIE SIZES

One size fits all sizes.  Our standard Body/ Forming die is long enough for cartridges up to the longest Rem. Win. Wby. cases.

Please choose your desired caliber.

17 CAL. .168 Pilot Hole
1# 17 MK4 / 17 PPC
2# 17 Rem. / 17 223
6.5MM .256 Pilot Hole
1# 6.5 BR
2# 6.5 WSSM
3# 6.5 X 55 / 6.5 Rem. Mag. / 6.5 WSM
4# 6.5-06 / 264 Win. Mag.
5# 6.5 STW / 6.5X300 Wby.Mag.
20 CAL. .198 Pilot Hole
1# 20 BR / 20 PPC
2# 20X223
270 CAL. .270 Pilot Hole
2# 270 WSSM
3# 270 WSM
4# 270 Win. / 270 Wby. Mag.
22 CAL. .2188 Pilot Hole
BR/PPC 22 Cal. Exact length no trimming required.
1# 221 Fireball / 22 PPC / 22 BR
2# 222 / 223 / 222 Rem. Mag. / 22 WSSM
3# 22-250 / 22-243 / 220 Swift / 22-284
7MM .276 Pilot Hole
1# 7MM BR
2# 7TCU / 7MM WSSM
3# 7MM-08 / 284 Win. / 7X57 / 7MM WSM
4# 280 Rem. / 7MM Mag.
5# 7MM STW / 7x300 Wby. Mag.
6MM .2362 Pilot Hole
BR/PPC 6MM Exact length no trimming required.
1# 6 PPC / 6 BR

2# 6X45 / 6X47 / 6MM WSSM
3# 243 Win. / 6MM Rem. / 6-284 / 240 Wby.

30 CAL. .300 Pilot Hole
1# 30 BR / 11/2 308
2# 30X47 / 30 WSSM
3# 308 Win. / 30 WSM
4# 30-06 / 300 Win. Mag.
5# 300 Wby Mag. / 30-378 Wby. Mag.

25 CAL. .250 Pilot Hole
1# 25 BR
2# 25 WSSM
3# 250-3000 / 257 Rob. / 25 WSM
4# 25-06 / 257 Wby.Mag.
338 CAL. 330 Pilot Hole
4# 338-06 / 338 Win Mag. / 338 Lapua
5# 340 Wby.Mag.


Improve Accuracy
Use your custom chamber reamer to finish your custom die for the perfect match between cartridge and chamber.

Die Blanks
Our Die Blanks are used by custom Gunsmiths world wide to achieve the minimal amount of case sizing for accuracy and to extend case life. Die Blanks allow the gunsmith to control quality and delivery of dies to the customer.  You have complete control of how much sizing and where the sizing takes place- neck, length, base and body taper.

Bushing Type Sizing Dies
Our Dies use standard 3/8 x 1/2 Wilson, Redding and Hornady bushings.

CNC Built
416 Stainless Steel or 12L-14 Steel (non-hardened)

Ready to Ream
Standard Pilot Hole Sizes 17 to 45 Cal.
Just ream die and cut to length.

Our Guarantee
If for any reason you're not satisfied with our product, just return it in the original condition for a full refund.
